TE devices have a wide range of ports and interface options, and it can sometimes be a surprise what one device has that another doesn't, or to remember what has what. For example, the OP-XY has multi-out, which you can set to be a number of different things, from audio to MIDI to CV. This is not necessarily obvious just from looking at it.
Was wondering if anyone had compared all these directly to each other, but found nothing, so I obsessed over this for a while and finally ended up with these.

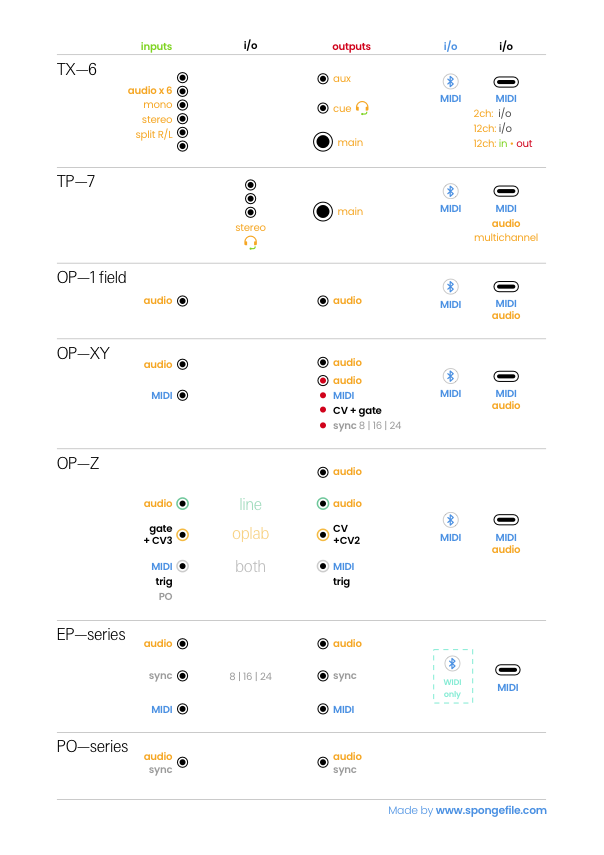

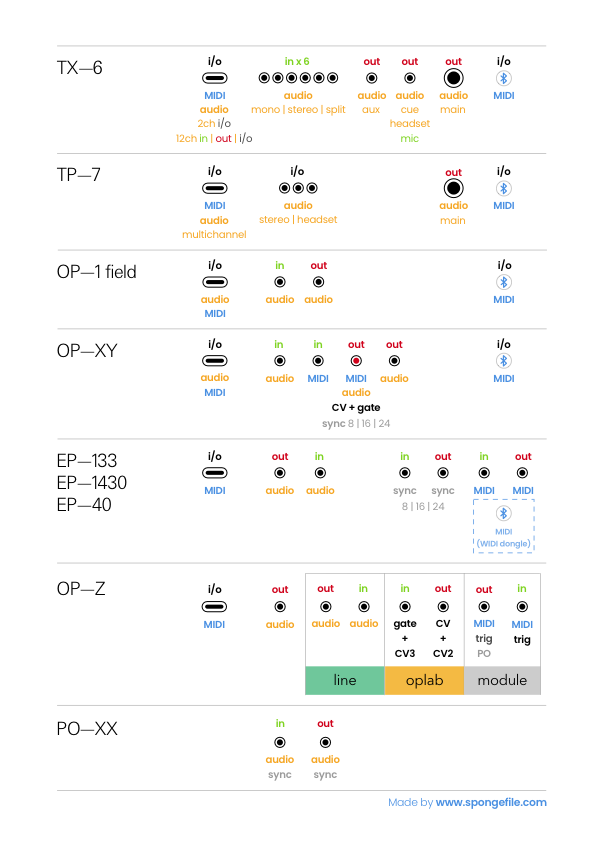

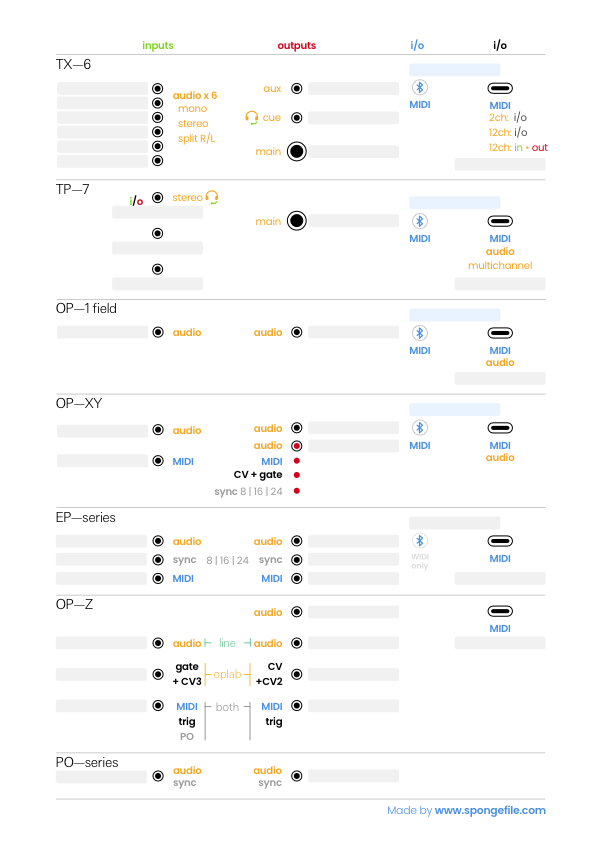

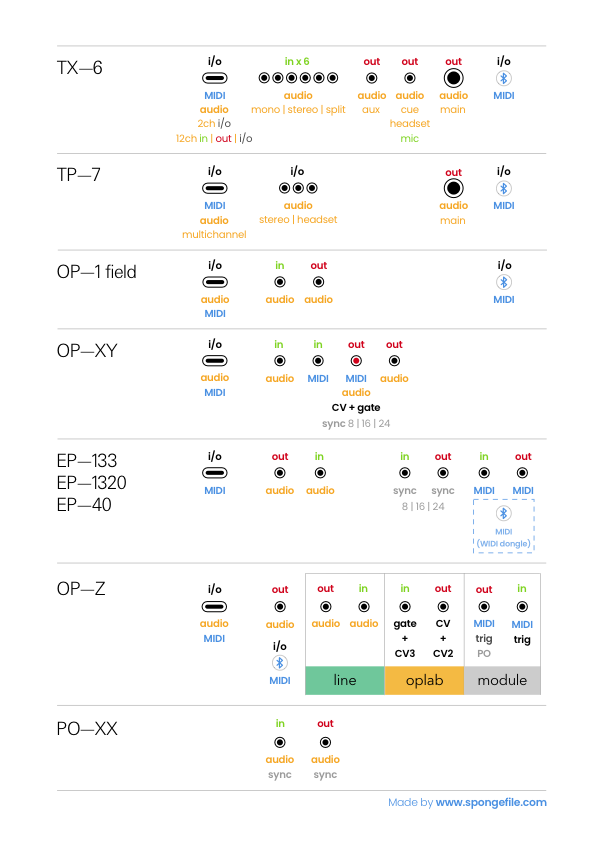

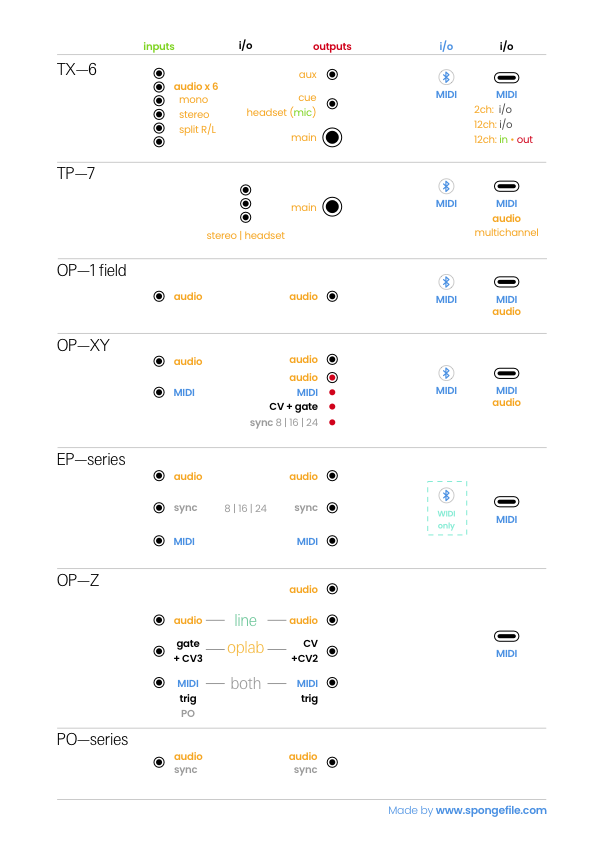

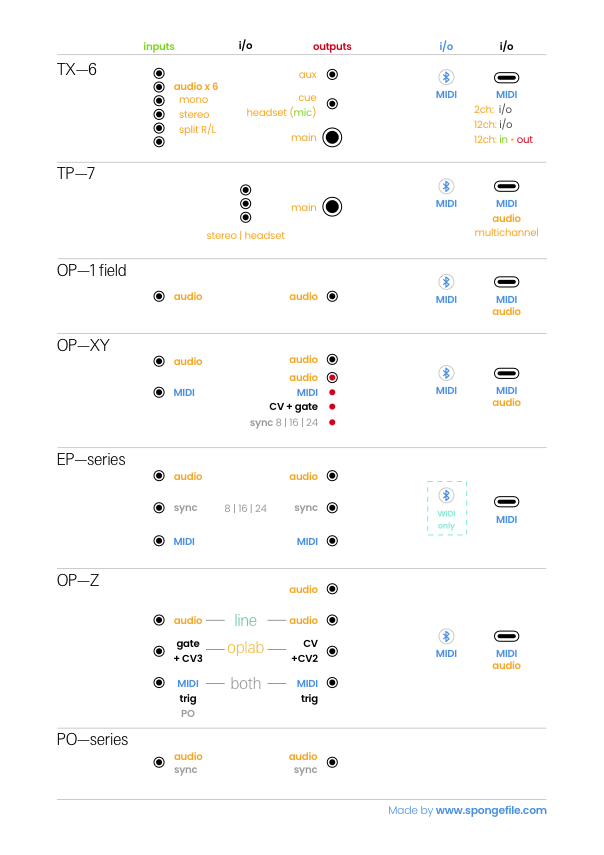

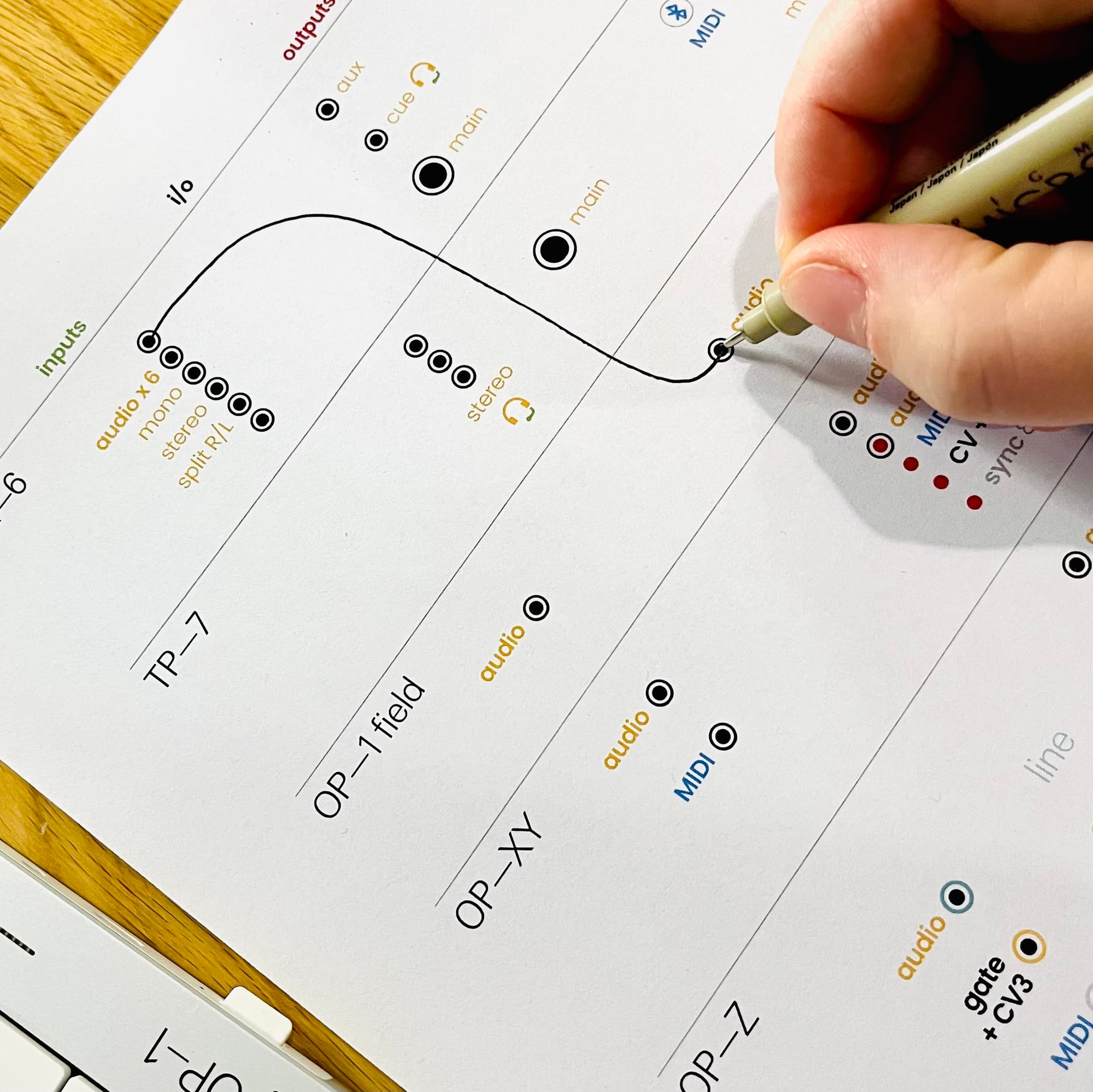

The first sheet is a reference where the ports are set up as you would see them on the devices. The rest are worksheets to help you plan your connections, one with fields you can fill out and some you can just draw on freeform. You can also hide devices you don't need by accordion folding them away.
How to use them

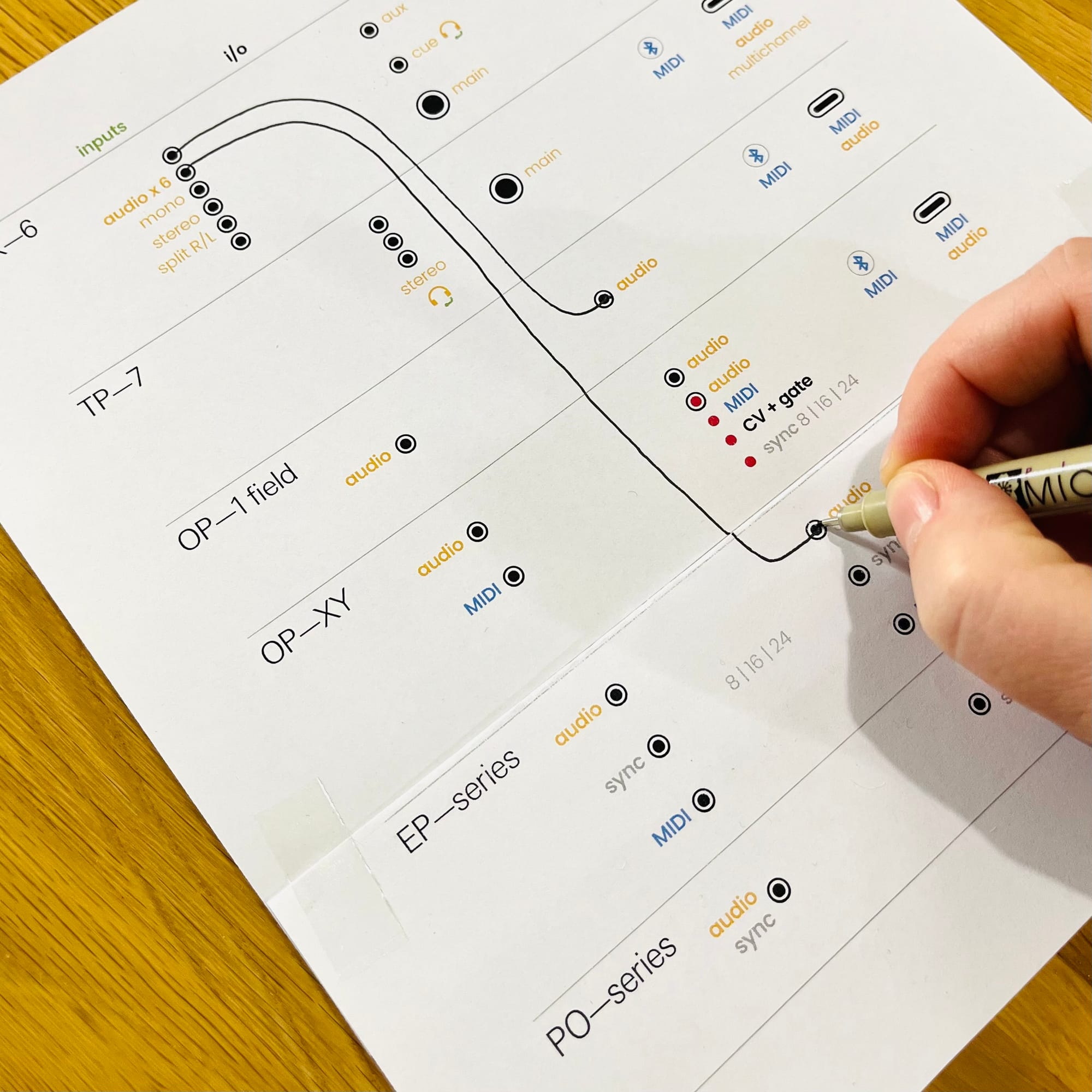

If there are devices you don't have or aren't using, you can just accordion fold them out of sight
The resources on this blog take a while to make, so if you download and use these, and want to support me making more, you can also:

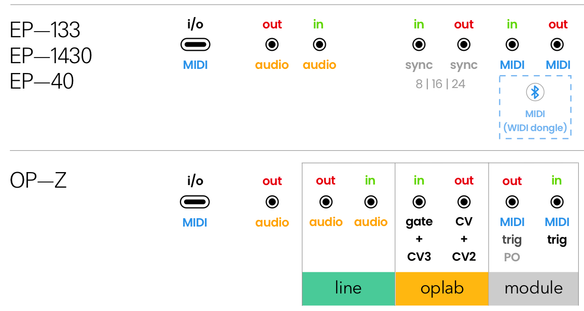

Reference sheets, guides and worksheets for all the inputs, outputs and connections of TE devices.
These guides include all 3.5mm jack, USB audio, USB MIDI and Bluetooth MIDI i/o connections for:
- TX-6
- TP-7
- OP-1f
- OP-XY
- EP-133, EP 1320, EP-40 (KO II, Medieval, Riddim)
- OP-Z
- Pocket operators
